MODEL C - Black with BMX Handlebar

Sale price $1,649.00 Regular price $1,899.00

Max Speed

28mph

Range

60 miles

Motor Power

750w

Bike Weight

53 lbs

Rider Height

5' 4" - 6' 10"

Weight Capacity

420 lbs
  • Strong yet lightweight, this iconic cruiser frame with 26" wheels is preferred by our taller riders
  • 750w peak motor per federal regulations (500w nominal, 1250w max output)
  • 60 Miles (14 Ah battery) EBC approved and certified Lithium-Ion NMC Cells (2 year warranty*)
  • Max unlocked speed at 28 mph

This iconic cruiser frame style is ideal for taller riders. Designed with a crossbar and battery on the downtube to consolidate the center of gravity, this e-bike provides extra space and support for larger riders, while maintaining a lightweight frame. A perfect combination of style and performance, the Model C features top quality components like a 750w peak output motor, 60mile 14Ah battery, puncture resistant tires and 4-piston hydraulic brakes. Awarded top rated E-Cruiser in USA by Electric Bike Report.  Built in our US factory, and shipped assembled and fully inspected to your door.

Tech Specs

Model: Model C

Motor*: 10 year warranty
500w nominal
750w programmed max output due to regulation
1250w max output possible

Battery: 60 Miles (14 Ah)
EBC approved and certified Lithium-Ion NMC Cells (2 year warranty*)

Charger: 2.5 Amp Smart Super Charger with Smart charging technology, cooling fan, aluminum cover & 3 prong charging port for safety

Brakes: 4 Piston, Hydraulic Disc Brakes, 180 mm Stainless steel (1.8 mm thick)
Comfort grip levers with motor cutoff safety sensor

Chain: Stainless Steel, Durable, Rust Resistant, Low Maintenance Patented Weather Coating

Drivetrain: 58T Chainring
Sealed bearings for durability, low maintenance and safety over time
Engineered specifically for ease of rider operation, 5 Power Assist Levels

Fork: Rigid fork

Grips: Hand-Stitched Leather or Rubber Cushion with Palm Support
Aluminum secure ends for Non slip

Handlebars: Cruiser Style for upright position

Kickstand: Motor Bike Grade, Heavy Duty Non-slip sole & wide reinforced rubber foot prevents slipping and sinking

LCD Screen: Multi Level, user friendly, Interactive, Color LCD Display with USB Charging Port for phone and other accessories

Lights: Front and Rear LED safety lights standard

Pedals: Large platform with comfort non-slip rubber with sealed bearings and dual reflectors

Wheels: Build in our factory - Dished, Trued and Tension perfectly ensuring efficient tracking, safety and range.
Double Walled Rims, Stainless Resistant 13G Spokes, Brass Nipples, Sealed Bearings in Hub

Seat: Large, high density foam with back bumpers for support and comfort

Stem:
Material: Alloy
Stem Length: 120mm
Bar clamp diameter: 25.4mm
Quill: 25.4 x 180mm
Adjustability: 0 - 60 degrees

Tires: Puncture Resistant, Reflective Side Walls with All weather rust proof
Schrader valve - Wheel Size
26x2.25" or 24x2.25"

Throttle: Thumb Throttle

Top Speed: *Factory settings 20 mph throttle and 20 mph PAS
(Can re-program to 28 mph PAS once confirmed with local city regulations)

Pedal Assist: Level 1-5

Frame: Aluminum 6061, Hydro-formed frame

Weight: 53lb

Weight Limit: 420lb

Bottom Bracket: 124.5mm alloy cups, double snap seals for water and dirt protection

Crankset: 56T Alloy Chainring + 170 mm Crank in Alloy 1/2'" x 3/32 for multispeed w/o chainguard

Rear Cog: 16 rear cog direct drive

Cassette: Shimano Tourney MF-TZ500 7-Speed

Rim: Multiple Freewheel. 14-28 Tooth 24 or 26"× 2" rim, double wall, 36 hole "13G stainless steel

Spokes: 36 spokes per rim

Tubes: Heavy Duty Schrader E-Bike Inner Tube, 24 or 26" x 1.75-2.125"

Hubs: 36 spoke hole, front wheel hub sealed cartridge bearings.
9mm quick release, 100mm axle
6 bolt disk rotor compatible

Seatpost: 30.4mm x 300mm

Seat Clamp: Quick release

Ride Testing

Speed:

On Throttle: 20 mph

Pedal Assist Level 1: 13 mph

Pedal Assist Level 2: 17 mph

Pedal Assist Level 3: 20 mph

Pedal Assist Level 4: 25 mph

Pedal Assist Level 5: 28 mph

Range:

On Throttle: 25 miles

Pedal Assist Level 1: 50 miles

Pedal Assist Level 2: 43 miles

Pedal Assist Level 3: 35 miles

Pedal Assist Level 4: 21 miles

Pedal Assist Level 5: 17 miles

FEATURES

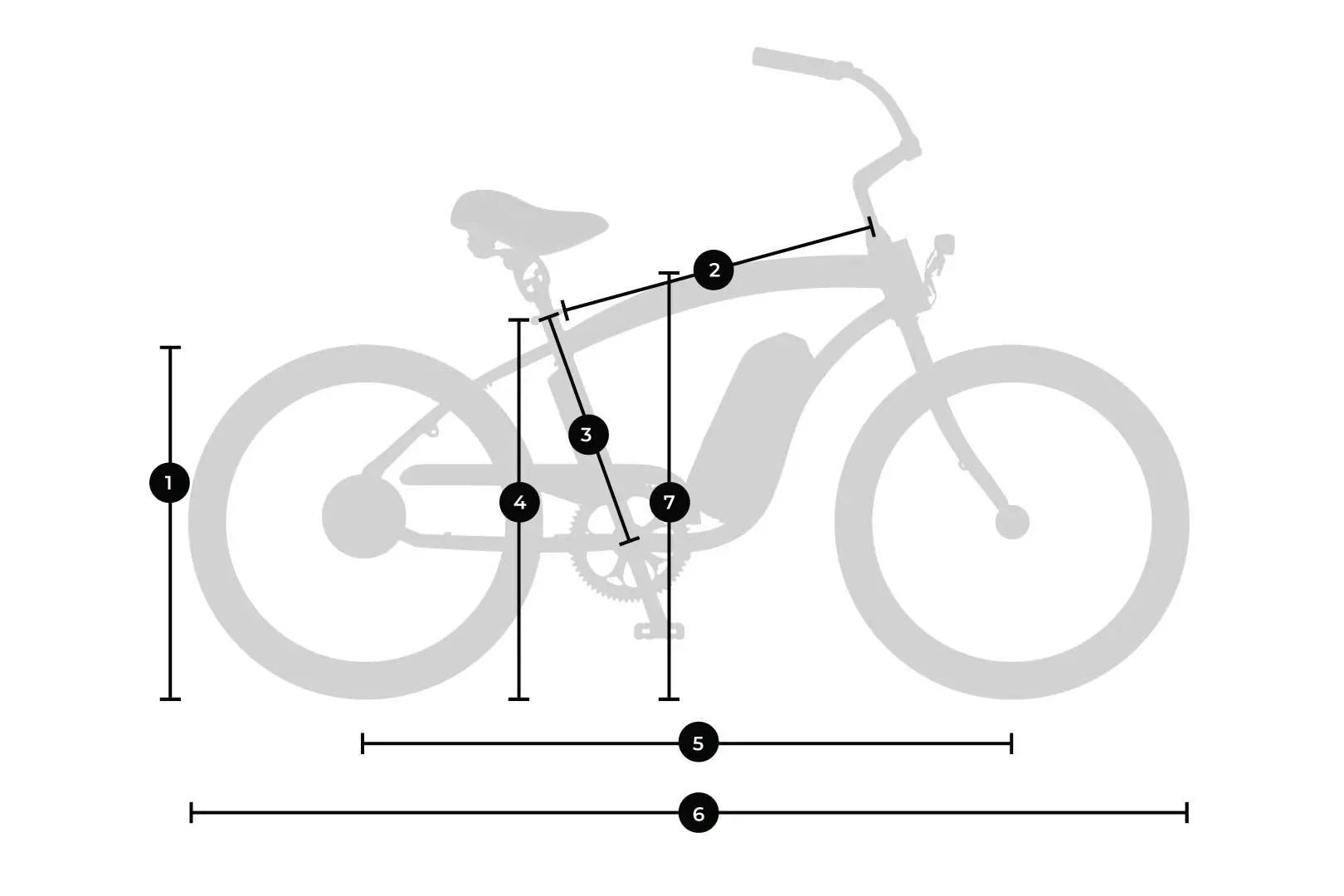

GEOMETRY

24" Wheel 26" Wheel*
Rear Height 24.6" 26.6"
Headset to Seat Tube 24.6" 25.6"
Seat Clamp to Bottom Bracket 17.6" 17.6"
Seat Clamp to Ground 26.3" 28.3"
Wheel Base 46" 48"
End to End 70.6" 74.6"
Standover Height 30.3" 31"
Recommended Rider Height 5' 4" - 6' 8" 5' 2" - 6' 10"
*Standard wheel size for Model C

RIDE TESTING

Pedal Assist

PA Range Speed
1 50 Miles 13 Mph
2 43 Miles 17 Mph
3 35 Miles 20 Mph
4 21 Miles 25 Mph
5 17 Miles 28 Mph

Throttle Only

Range Speed
25 Miles 20 Mph

*Data collected by actual ride testing. 170-175lb Rider, Smooth Terrain, No Headwind, No Starting / Stopping. Tires have correct pressure and in good condition.
